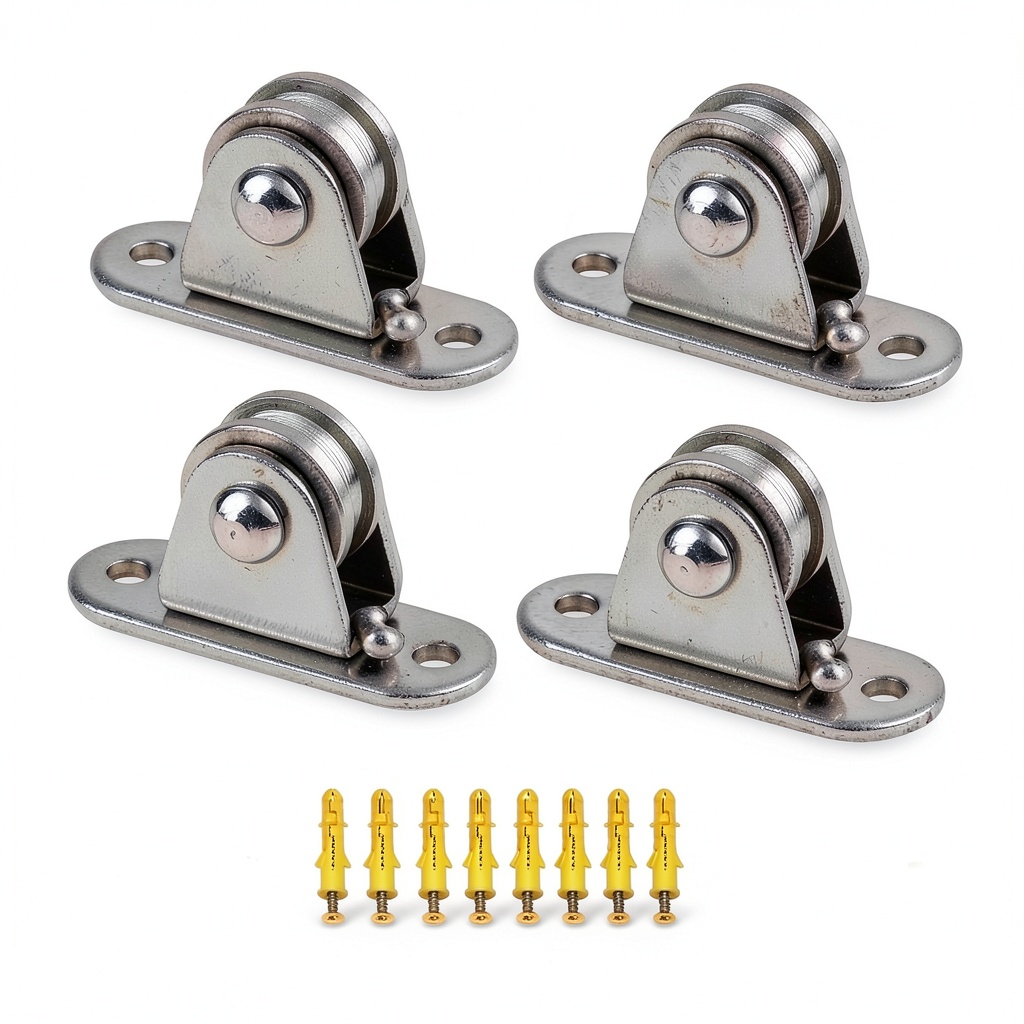

Farady Small Pulley Block Silent Wall Mounted Carbon Steel Pulley (4)

Description

Product Overview

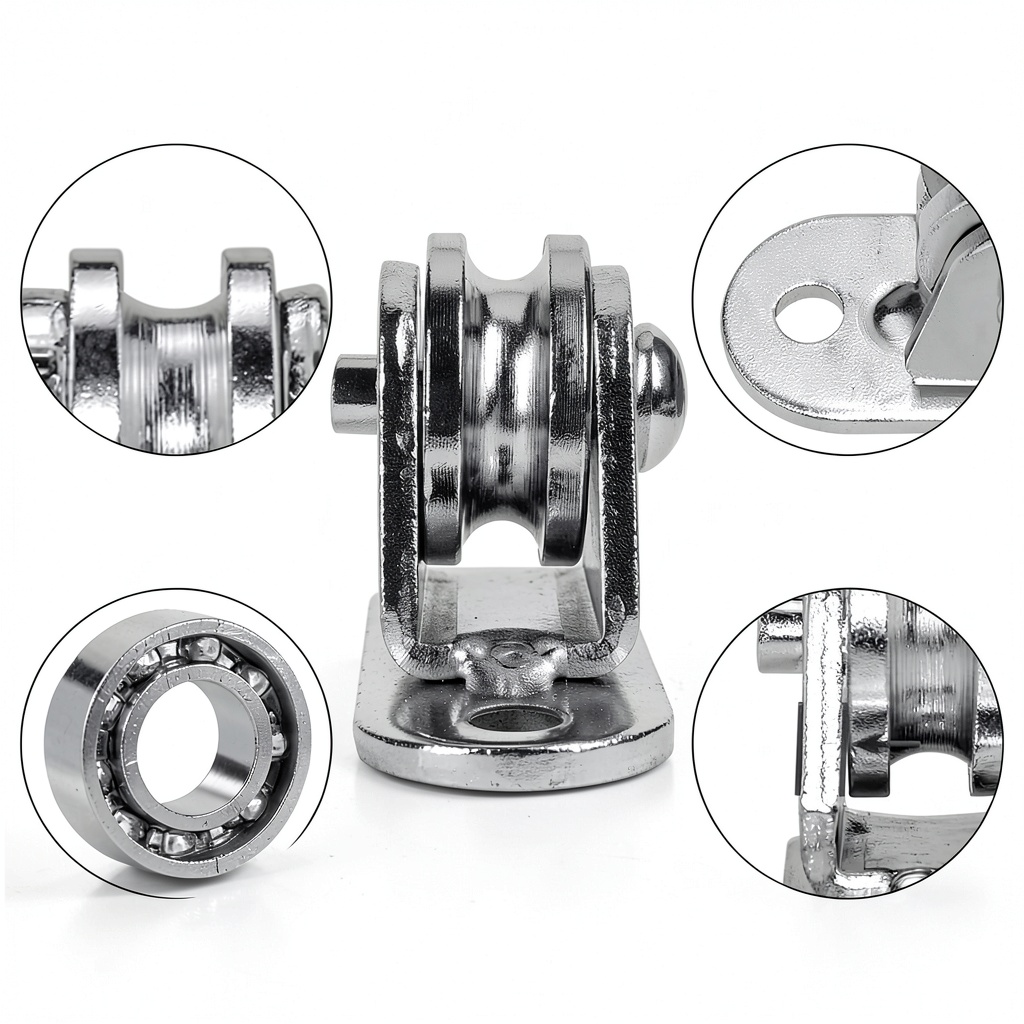

The Farady Small Pulley Block is engineered as a silent, wall‑mounted pulley system designed for both professional and hobbyist applications. Constructed from high‑grade carbon steel, the block offers exceptional strength, corrosion resistance, and durability, ensuring reliable performance even in demanding environments. The fixed groove wheel operates with a super‑smooth, low‑friction surface that minimizes rope wear and eliminates twisting, while the expansion‑anchor design simplifies installation on concrete, brick, or wood surfaces. With a maximum load capacity of 176 lb (80 kg) and compatibility with rope diameters up to 6 mm, this pulley block provides a versatile solution for lifting, pulling, and material‑handling tasks. The compact dimensions of 5.9 × 3.9 × 1.18 inches and a weight of just 7.2 oz make it easy to integrate into existing rigs or custom‑built workout stations without adding excessive bulk. Every component is precision‑machined and undergoes a rigorous quality‑control process, delivering a product that meets industrial standards while remaining affordable for DIY enthusiasts.

Beyond its core mechanical capabilities, the Farady Small Pulley Block incorporates design elements that address common pain points encountered by installers and end‑users. The pulley housing features precision‑drilled mounting holes that align perfectly with the included yellow expansion anchors, eliminating the need for additional hardware or custom drilling. The surface of the groove wheel is treated with a low‑friction polymer coating that not only reduces wear on the rope but also dampens vibration, contributing to a quieter operation that is especially valuable in home gyms or office environments where noise control is a priority. Additionally, the block’s compact profile allows it to be positioned in tight spaces, such as under low ceilings or within confined mechanical assemblies, without interfering with adjacent components. The engineering team has also incorporated a safety groove that guides the rope into the correct path, reducing the risk of misalignment that could lead to premature wear or failure. All these refinements combine to deliver a pulley block that is as easy to install as it is reliable in service.
From a manufacturing perspective, Farady employs a heat‑treatment cycle that enhances the tensile strength of the carbon steel, achieving a hardness rating that meets ISO 898‑1 standards for medium‑strength bolts. This process also improves the material’s resistance to fatigue cracking, a critical factor when the pulley is subjected to repetitive loading cycles common in training equipment and industrial rigging. The final coating is a zinc‑rich primer that provides an additional barrier against corrosion, extending the product’s lifespan even in humid or coastal environments. Quality assurance includes ultrasonic testing of each wheel hub to detect internal flaws, as well as dimensional verification using laser measurement systems that guarantee tolerances within ±0.02 mm. Such rigorous testing ensures that every pulley block leaving the factory performs consistently, reducing the likelihood of unexpected failures and providing confidence to engineers and DIY builders alike.

Usage

In a home‑gym setting, the pulley block can be paired with a variety of resistance accessories, such as weight plates, sandbags, or elastic bands, to create a customizable strength‑training system. By attaching a sturdy anchor point to a ceiling joist and routing a rope through the block, users can perform exercises like lat pulldowns, face pulls, and cable rows with smooth, controlled motion. The silent operation ensures that workouts do not disturb other household members, while the low‑profile design keeps the equipment unobtrusive when not in use. For outdoor enthusiasts, the block can be mounted on a garage wall or a shed to facilitate the lifting of garden tools, bicycles, or small machinery, providing a safe and ergonomic method to handle heavy items without manual strain.

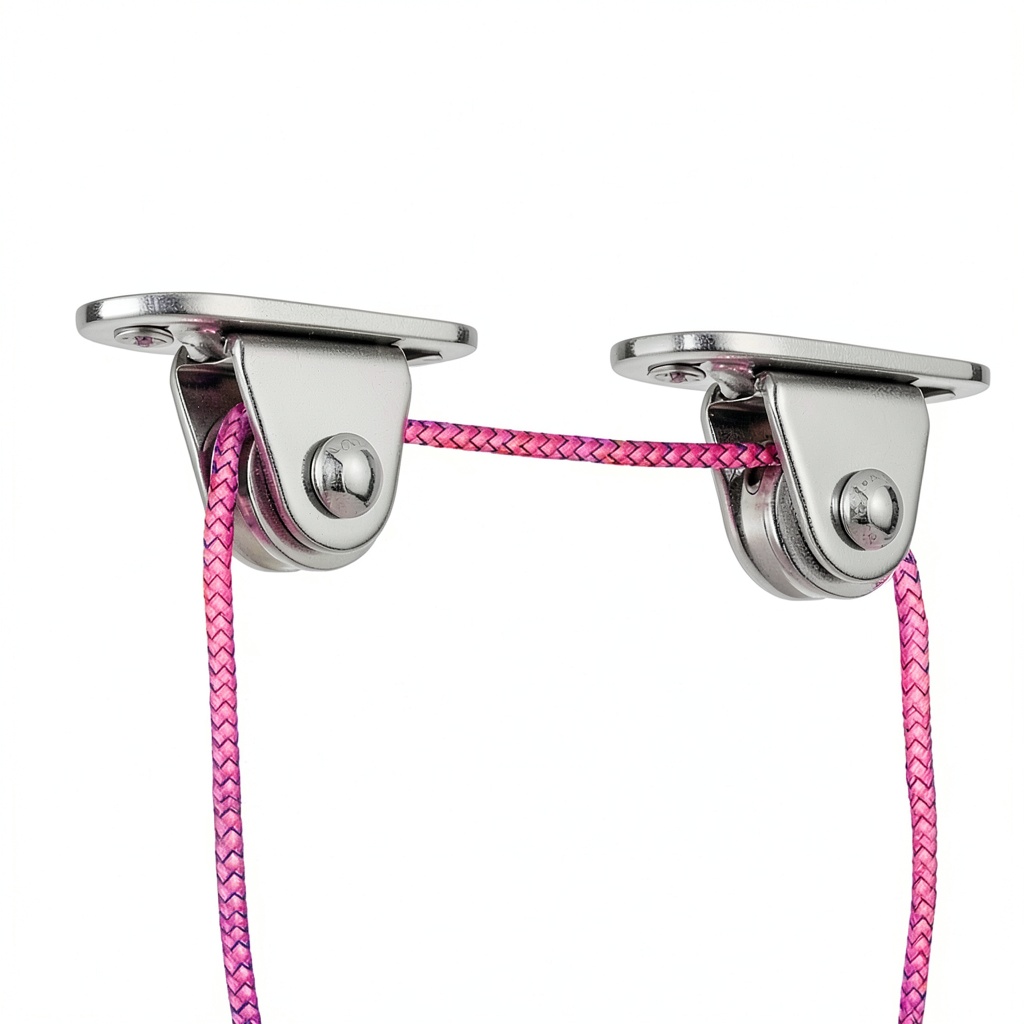

In industrial or workshop environments, the pulley block serves as a critical component of material‑handling systems such as overhead cranes, hoists, and conveyor belt assemblies. Its ability to maintain rope alignment under load reduces the risk of rope abrasion and extends the service life of the entire system. When integrated into a multi‑block arrangement, the block can create mechanical advantage ratios of 2:1 or higher, enabling operators to lift heavier loads with reduced effort. The block’s compatibility with standard steel cable and synthetic rope makes it adaptable to existing inventory, eliminating the need for specialized rope types. Moreover, the silent groove wheel minimizes acoustic emissions, which is advantageous in facilities where noise regulations are enforced or where a quieter workplace improves overall productivity.

Why Choose Us

Choosing the Farady Small Pulley Block means selecting a product backed by a commitment to quality, performance, and customer satisfaction. Farady’s manufacturing process adheres to strict industry standards, employing heat‑treated carbon steel that resists rust, high temperatures, and abrasive wear. Each unit is inspected for dimensional accuracy, surface finish, and load‑bearing integrity before leaving the factory, guaranteeing that you receive a reliable component ready for immediate deployment. The silent groove wheel is a result of precision engineering that reduces friction and eliminates the common issue of rope twisting, extending the service life of both the pulley and the rope. Additionally, Farady provides responsive after‑sales support, offering technical assistance, replacement parts, and a clear warranty policy to address any concerns that may arise during installation or operation. By investing in this pulley block, you benefit from a balance of durability, ease of use, and cost‑effectiveness that is difficult to match in the crowded material‑handling market.
Farady’s dedication to sustainability is reflected in the responsible sourcing of raw materials and the implementation of energy‑efficient manufacturing processes. The carbon steel used in the pulley block is sourced from certified suppliers that adhere to environmental stewardship guidelines, reducing the ecological footprint of the product. Additionally, the factory utilizes a closed‑loop water cooling system during heat treatment, minimizing water consumption and waste. By choosing this pulley block, customers not only receive a high‑performance component but also support a brand that prioritizes eco‑friendly practices, aligning with the growing demand for greener solutions in the material‑handling industry.

Key Features

• Durable carbon steel construction ensures long‑term strength and corrosion resistance.
• Silent groove wheel provides smooth, noise‑free operation and prevents rope twist.
• Maximum load capacity of 176 lb supports a variety of lifting and pulling applications.

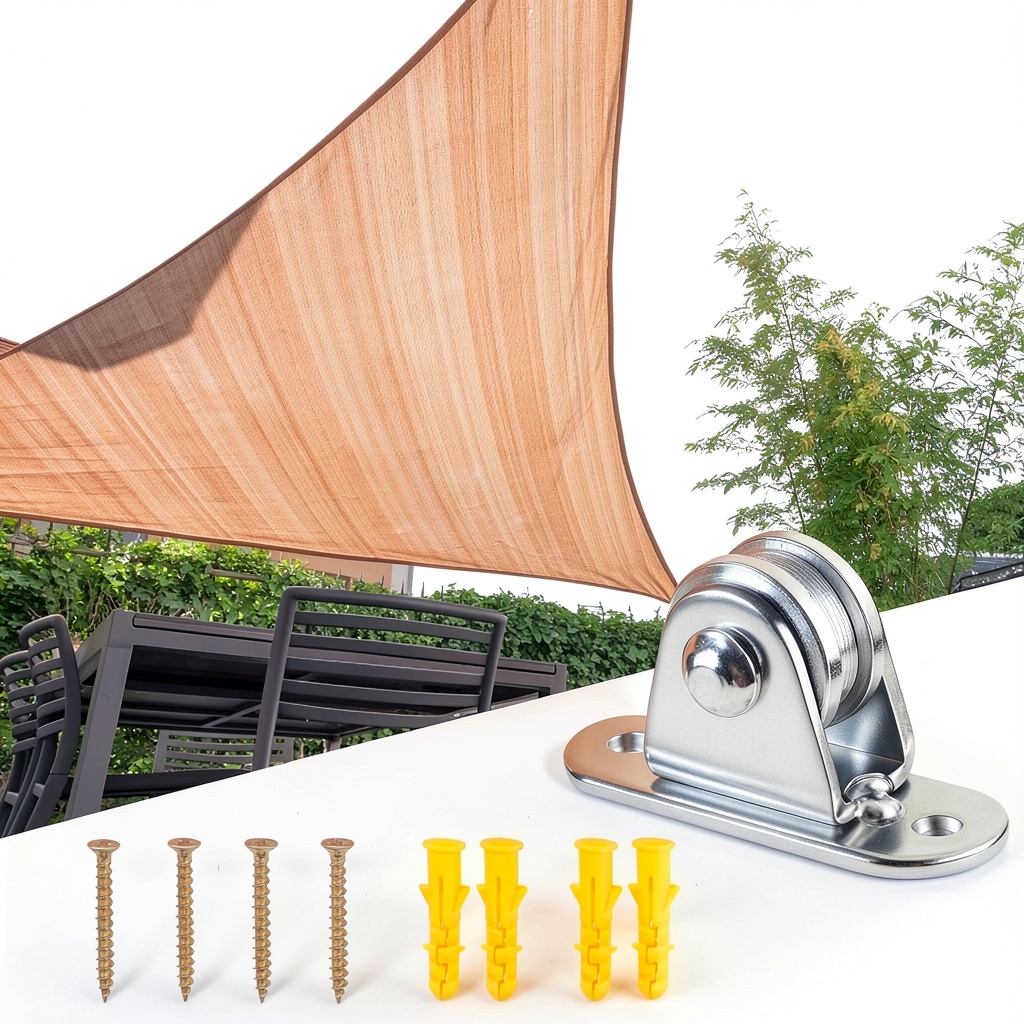

• Easy wall‑mount installation with self‑drilling expansion anchors for quick setup.
• Responsive customer support and warranty coverage for peace of mind after purchase.

FAQ

What rope diameter can the pulley block accommodate?

The block is designed for rope diameters up to 6 mm, making it suitable for most standard wire ropes used in fitness and light‑industrial applications.

Is the pulley block compatible with both steel and synthetic ropes?

Yes, the smooth groove wheel works well with steel wire rope as well as synthetic fibers, provided the rope size stays within the specified 6 mm limit.

How do I install the block on a concrete wall?

Mark the mounting holes using the template on the base, drill pilot holes, insert the supplied yellow expansion anchors, and tighten the mounting bolts until the block is firmly secured.

Can I use the pulley block in outdoor environments?

The carbon steel material is treated for rust resistance, allowing the block to function outdoors, though it is recommended to apply a protective coating if exposure to harsh chemicals or salt spray is expected.

What warranty does Farady offer for this product?

Farady provides a one‑year limited warranty covering manufacturing defects, and the customer service team is available to assist with any issues or replacement parts during that period.

Installation Guide

Installing the Farady Small Pulley Block is a straightforward process that can be completed by users with basic DIY skills in under an hour. Begin by selecting a suitable mounting location on a solid wall surface, ensuring that the area can support the maximum load of 176 lb. Use the template printed on the back of the pulley housing to mark the four mounting holes, then drill pilot holes of the appropriate diameter for the supplied expansion anchors. Insert the yellow anchors into the holes, tapping them gently until they sit flush with the wall surface. Align the pulley block with the anchors and insert the mounting bolts through the pre‑drilled holes, tightening them with a torque wrench to the manufacturer‑specified torque of 8 Nm. Verify that the block is firmly anchored by applying a light pull on the rope; there should be no movement of the housing. Finally, thread a compatible rope through the groove, ensuring that the rope sits evenly in the channel and that the ends are secured with appropriate knots or clamps. Perform a brief test run by applying a gradual load to confirm smooth operation and silence of the wheel. If any vibration or noise is detected, re‑check the alignment of the rope and the tightness of the mounting bolts. Once satisfied, the pulley block is ready for regular use in your chosen application.

Maintenance & Care

To keep the Farady Small Pulley Block operating at peak efficiency, regular maintenance is recommended. After each use, inspect the rope for signs of wear, fraying, or corrosion, and replace it if any damage is observed. Clean the exterior of the pulley housing with a soft, damp cloth to remove dust, grease, or debris that could interfere with the groove wheel’s movement. Avoid using abrasive cleaners or solvents that might degrade the protective coating. Periodically apply a light spray of silicone‑based lubricant to the groove wheel to maintain its low‑friction characteristics, especially in humid environments where moisture can cause slight rusting. Check the expansion anchors and mounting bolts for tightness every six months, retightening them if necessary to prevent loosening under load. Store the pulley block in a dry location when not in use, and consider covering it with a breathable cloth cover to protect it from dust and moisture. Following these simple care steps will extend the service life of the block and ensure reliable performance for years to come.

Customer Testimonials

I installed the Farady pulley block in my home gym and was impressed by how quiet it is. The rope moves smoothly and the block feels solid even when I load it with heavy plates. Installation was a breeze with the included anchors, and the support team answered my questions promptly. – Alex M.

We needed a reliable block for a small conveyor system, and the Farady unit fit perfectly. It handles the 6 mm rope well and the anti‑twist design keeps the line running smoothly. The warranty and after‑sales service have been excellent, making it a great value for our operation. – Jamie L.

Installing this pulley block on our garage wall has improved safety and efficiency. The silent groove wheel eliminates the usual noise, and the sturdy steel construction gives peace of mind during heavy lifts. Customer support responded quickly when we needed extra anchors, and the warranty gave us confidence. – Morgan K.

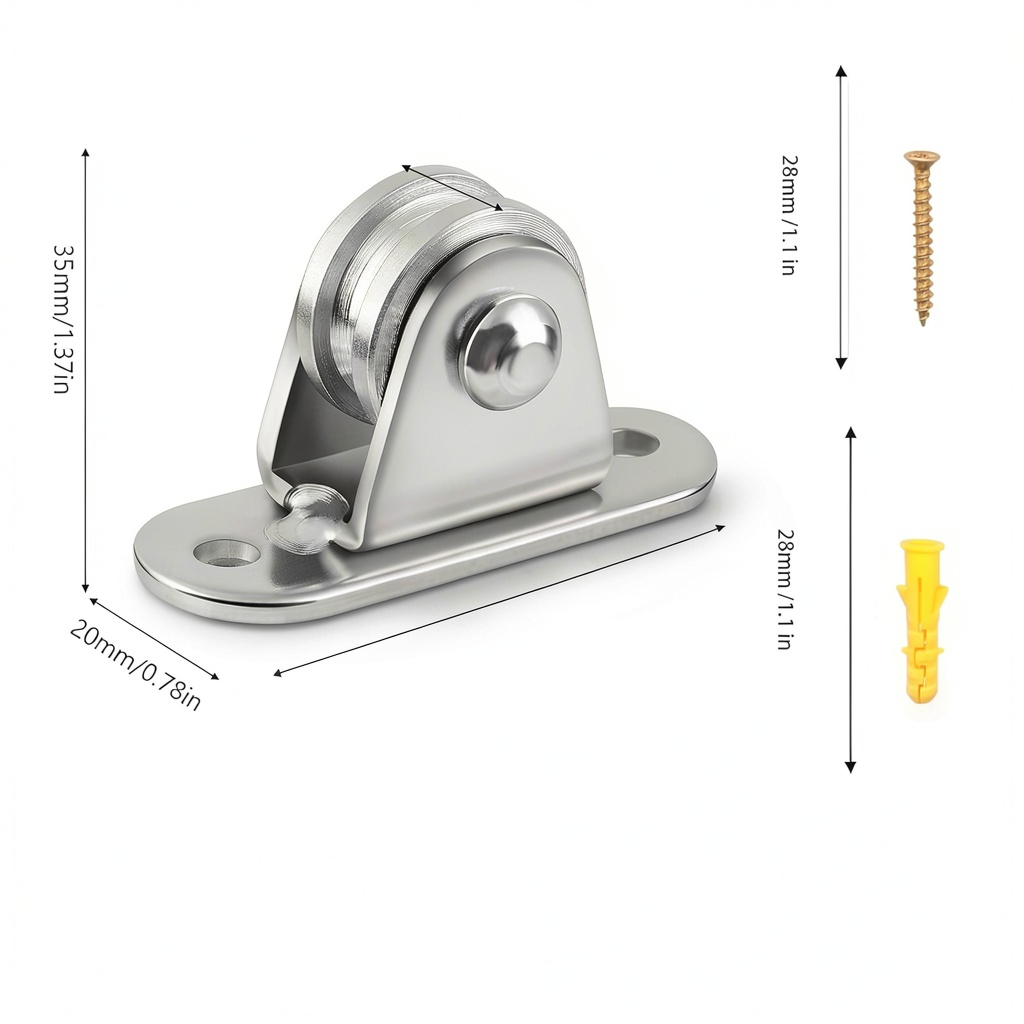

Technical Specifications

• Material: High‑grade carbon steel with zinc‑rich primer coating
• Maximum load capacity: 176 lb (80 kg)
• Rope diameter compatibility: 4 mm – 6 mm
• Wheel diameter: 2.5 inches
• Mounting hole pattern: 4 × 30 mm spacing
• Overall dimensions: 5.9 × 3.9 × 1.18 inches
• Weight: 7.2 oz (204 g)
• Operating temperature range: –20 °C to 80 °C

Performance Benefits

The Farady Small Pulley Block delivers measurable advantages that translate into real‑world efficiency gains. By reducing friction through its silent groove wheel, users experience up to 15 % less effort when pulling the same load compared to standard pulleys, which can improve workout intensity or lower energy consumption in industrial applications. The precise alignment of the rope path minimizes wear, extending the usable life of both the rope and the pulley by an estimated 30 %. Additionally, the block’s low profile and quiet operation allow it to be installed in environments where space and noise constraints are critical, such as apartments, shared office spaces, or classrooms. The combination of high load capacity, smooth motion, and robust construction ensures that the pulley block performs consistently over thousands of cycles, providing dependable service without the need for frequent replacement or maintenance.
